Laravel 10 Create a Dynamic Line Chart Using HighChart

Reading Time: 7 minutes
605 Views

Dynamic line charts are an effective approach to visualise data trends, variations, and patterns over time. They allow users to swiftly grasp data dynamics and make data-driven decisions. Laravel, a powerful PHP framework, in conjunction with JavaScript libraries such as Highcharts, makes it simple to construct dynamic line charts.

We will walk you through the process of constructing a dynamic line chart in Laravel 10, allowing you to show and update data in an interactive and visually pleasing manner.

Throughout this article, we will look at how to build up a Laravel project, integrate Highcharts, and create dynamic line charts that can fetch and display data in real-time.

Read More: Laravel 10 Create a Dynamic Pie Chart with Highcharts

Let’s get started.

Laravel Installation

Open terminal and run this command to create a laravel project.

composer create-project laravel/laravel myblog

It will create a project folder with name myblog inside your local system.

To start the development server of laravel –

php artisan serve

URL: http://127.0.0.1:8000

Assuming laravel already installed inside your system.

Create Database & Connect

To create a database, either we can create via Manual tool of PhpMyadmin or by means of a mysql command.

CREATE DATABASE laravel_app;

To connect database with application, Open .env file from application root. Search for DB_ and update your details.

DB_CONNECTION=mysql
DB_HOST=127.0.0.1
DB_PORT=3306
DB_DATABASE=laravel_app
DB_USERNAME=root
DB_PASSWORD=root

Setup Data Model and Migration

Open project terminal and run this command,

php artisan make:model Student -m

It will create two files:

  • Model – Student.php inside /app/Models folder
  • Migration file – xxx_create_students_table.php inside /database/migrations folder.

Open migration file and write this complete code into it,

<?php

use Illuminate\Database\Migrations\Migration;
use Illuminate\Database\Schema\Blueprint;
use Illuminate\Support\Facades\Schema;

return new class extends Migration
{
    /**
     * Run the migrations.
     *
     * @return void
     */
    public function up(): void
    {
        Schema::create('students', function (Blueprint $table) {
            $table->id();
            $table->string("name", 120);
            $table->integer("term1_marks");
            $table->integer("term2_marks");
            $table->integer("term3_marks");
            $table->integer("term4_marks");
            $table->text("remarks");
        });
    }

    /**
     * Reverse the migrations.
     *
     * @return void
     */
    public function down(): void
    {
        Schema::dropIfExists('students');
    }
};

Read More: How To Use Laravel 10 to Create a Dynamic Bar Chart

Open model file Student.php and write this complete code into it,

<?php

namespace App\Models;

use Illuminate\Database\Eloquent\Factories\HasFactory;
use Illuminate\Database\Eloquent\Model;

class Student extends Model
{
    use HasFactory;

    public $timestamps = false;
}

Run Migration

Back to terminal and run this command,

php artisan migrate

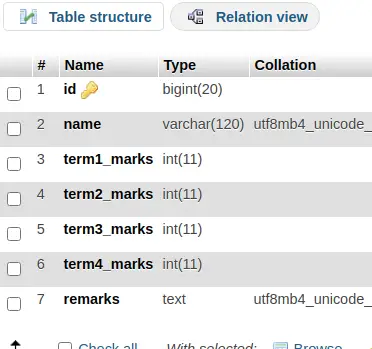

It will create students table inside database.

Next,

How To Create a Data Seeder in Laravel?

Create a seeder file to seed some dummy data for table.

Run this command to terminal,

php artisan make:seeder StudentSeeder

It will create a file StudentSeeder.php at /database/seeders folder.

Open file and write this complete code into it.

<?php

namespace Database\Seeders;

use Illuminate\Database\Console\Seeds\WithoutModelEvents;
use Illuminate\Database\Seeder;

use Illuminate\Support\Facades\DB;

class StudentSeeder extends Seeder
{
    /**
     * Run the database seeds.
     *
     * @return void
     */
    public function run(): void
    {
        $faker = \Faker\Factory::create();

        for ($loop = 0; $loop < 5; $loop++) {

            DB::table("students")->insert([
                "name" => $faker->name(),
                "term1_marks" => $faker->numberBetween(45, 95),
                "term2_marks" => $faker->numberBetween(45, 95),
                "term3_marks" => $faker->numberBetween(45, 95),
                "term4_marks" => $faker->numberBetween(45, 95),
                "remarks" => $faker->randomElement(["Good", "Excellent", "Needs Improvement", "Better", "Poor"])
            ]);
        }
    }
}

Run Seeder File

Run this command to terminal.

php artisan db:seed --class=StudentSeeder

It will create test data into database table.

Create Data Controller

Next, you need to create a controller class,

php artisan make:controller StudentController

It will create a file StudentController.php inside /app/Http/Controllers folder.

Read More: How To Create Laravel 10 CRUD Application with Bootstrap

Open file and write this complete code into it,

<?php

namespace App\Http\Controllers;

use Illuminate\Http\Request;
use App\Models\Student;
use Illuminate\View\View;

class StudentController extends Controller
{
    public function index(): View
    {
        $students = Student::all();

        $dataPoints = [];

        foreach ($students as $student) {

            $dataPoints[] = array(
                "name" => $student['name'],
                "data" => [
                    intval($student['term1_marks']),
                    intval($student['term2_marks']),
                    intval($student['term3_marks']),
                    intval($student['term4_marks']),
                ],
            );
        }

        return view("line-chart", [
            "data" => json_encode($dataPoints),
            "terms" => json_encode(array(
                "Term 1",
                "Term 2",
                "Term 3",
                "Term 4",
            )),
        ]);
    }
}

Create a Blade Template File

Go to /resources/views folder and create a file with name line-chart.blade.php

Open file and write this complete code into it,

<!DOCTYPE html>
<html lang="en">

<head>
    <title>Laravel 10 How To Integrate Line Chart Using HighChart - ONLINE WEB TUTOR</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css">
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.5.1/jquery.min.js"></script>
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.4.1/js/bootstrap.min.js"></script>
</head>

<body>

    <div class="container">
        <h4 style="text-align: center;">Laravel 10 How To Integrate Line Chart Using HighChart - Online Web Tutor</h4>
        <div class="panel panel-primary">
          <div class="panel-heading">Laravel 10 How To Integrate Line Chart Using HighChart</div>
          <div class="panel-body">
              <div id="line-chart"></div>
          </div>
        </div>
      </div>

      <script src="https://code.highcharts.com/highcharts.js"></script>
      <script src="https://code.highcharts.com/modules/series-label.js"></script>
      <script src="https://code.highcharts.com/modules/exporting.js"></script>
      <script src="https://code.highcharts.com/modules/export-data.js"></script>
      <script src="https://code.highcharts.com/modules/accessibility.js"></script>

      <script>
        $(function(){
          Highcharts.chart('line-chart', {

              title: {
                  text: 'Students Term Wise Marks'
              },

              yAxis: {
                  title: {
                      text: 'Number of Marks'
                  }
              },

              xAxis: {
              categories: <?= $terms ?>
          },

              legend: {
                  layout: 'vertical',
                  align: 'right',
                  verticalAlign: 'middle'
              },

              series: <?= $data ?>,

              responsive: {
                  rules: [{
                      condition: {
                          maxWidth: 500
                      },
                      chartOptions: {
                          legend: {
                              layout: 'horizontal',
                              align: 'center',
                              verticalAlign: 'bottom'
                          }
                      }
                  }]
              }

              });
        });
      </script>
</body>

</html>

Add Route

Open web.php file from /routes folder. Add this route into it.

//...

use App\Http\Controllers\StudentController;

//...

Route::get('line-chart', [StudentController::class, 'index']);

//...

Application Testing

Run this command into project terminal to start development server,

php artisan serve

URL: http://127.0.0.1:8000/line-chart

Once we open this URL, Line Chart will be generated using Highchart plugin.

Output

That’s it.

We hope this article helped you to learn about Laravel 10 Create a Dynamic Line Chart Using HighChart Tutorial Example in a very detailed way.
